End sleeve stainless steel V4A 1.4401 for wire rope

End sleeve stainless steel V4A

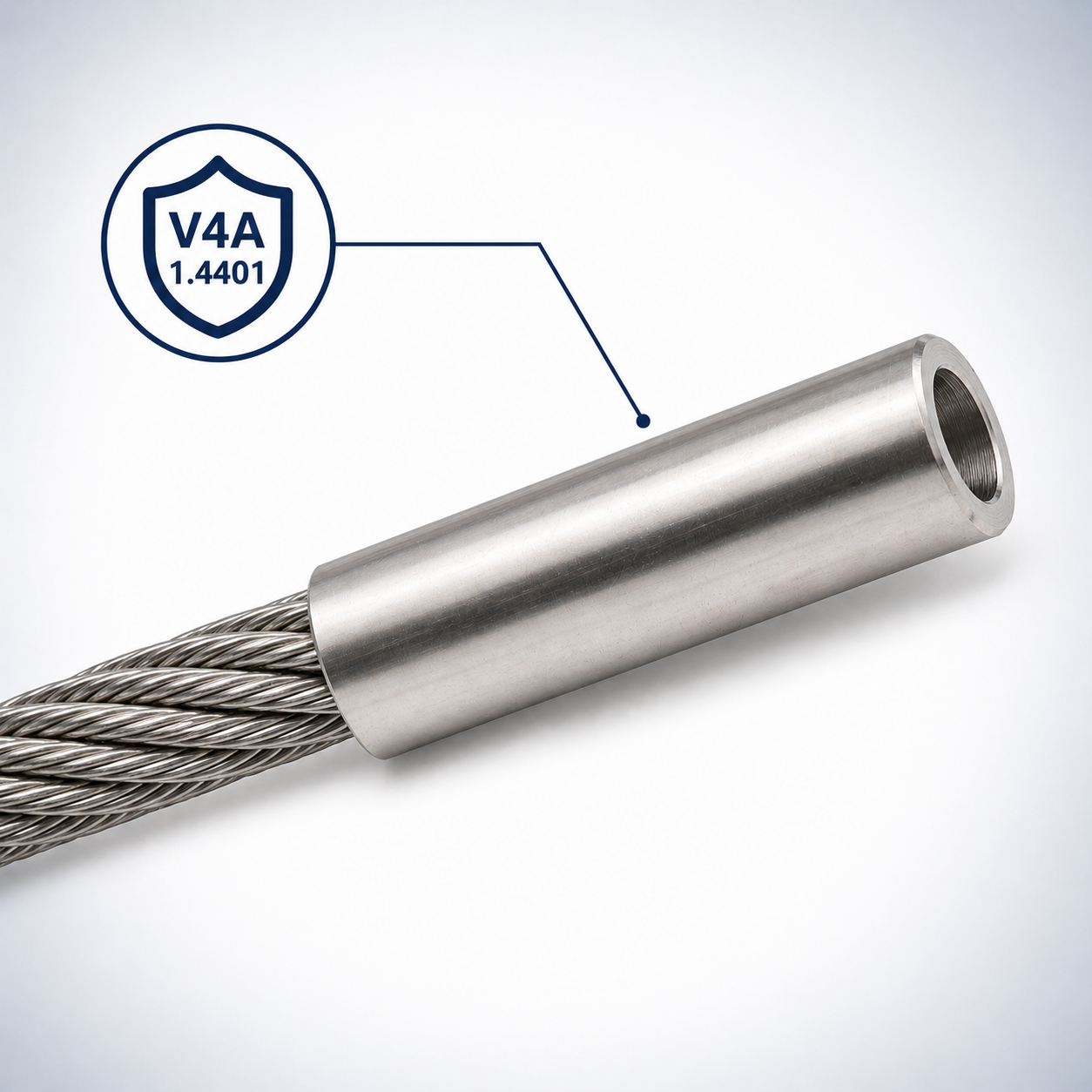

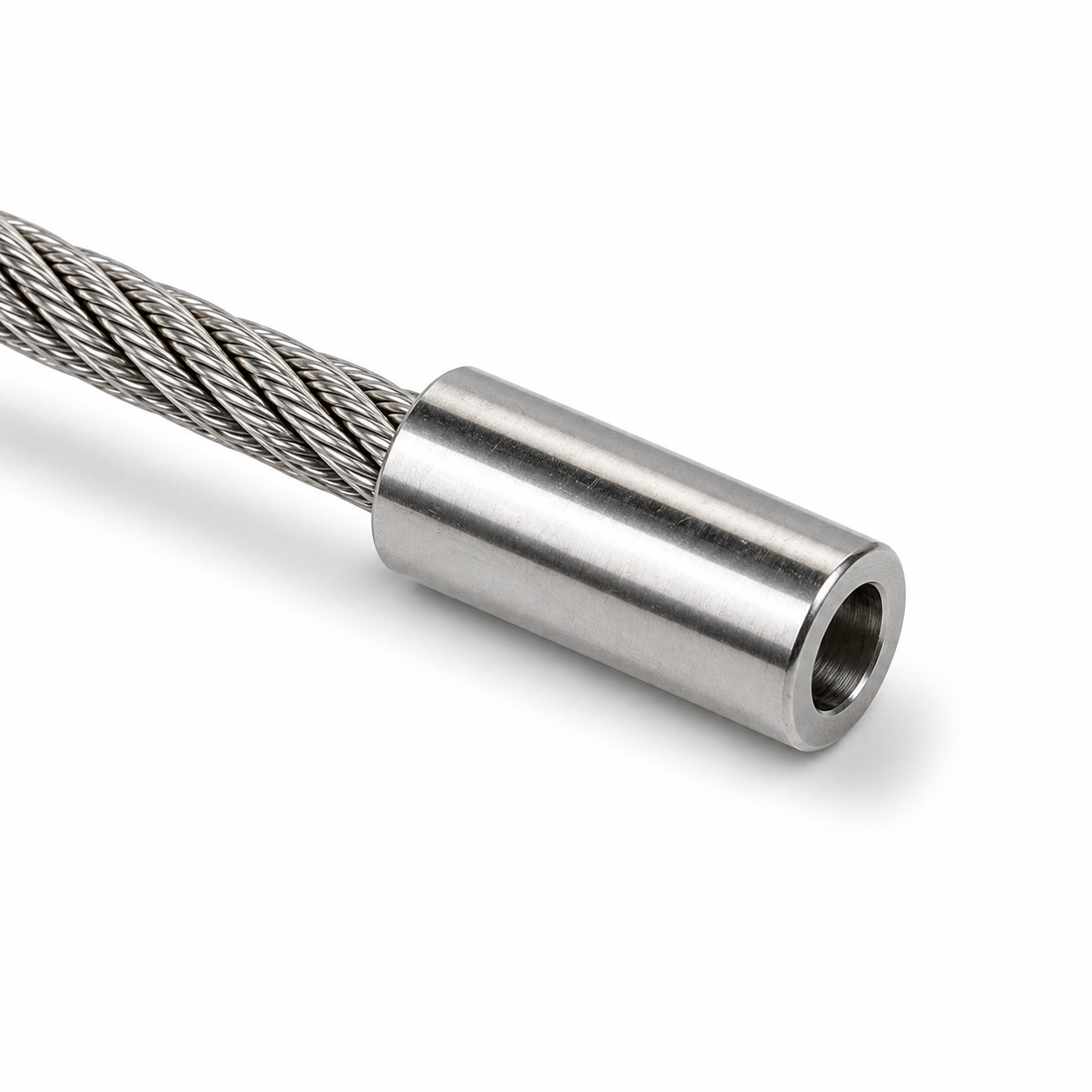

The end sleeve made of V4A stainless steel (1.4401 / AISI 316) is the ideal solution for the permanent and secure fastening of wire ropes. It is placed over the rope end and then crimped, creating a stable, load-bearing connection.

Thanks to the high-quality V4A stainless steel, the end sleeve is particularly rustproof, corrosion-resistant and durable – perfect for use outdoors, in marine environments or in demanding industrial applications.

Benefits at a glance

• ✔ Stainless steel V4A (1.4401 / AISI 316) – extremely corrosion-resistant
• ✔ Suitable for wire ropes – secure end connection
• ✔ High stability – ideal for high-load applications
• ✔ Clean appearance – professional finish after swaging
• ✔ For outdoor & marine use – weather- and seawater-resistant

Typical applications

• Wire-rope railings and stainless steel cables
• Cable constructions for indoor and outdoor use
• Boat and marine applications
• Construction, trades and industry
• DIY and fastening solutions

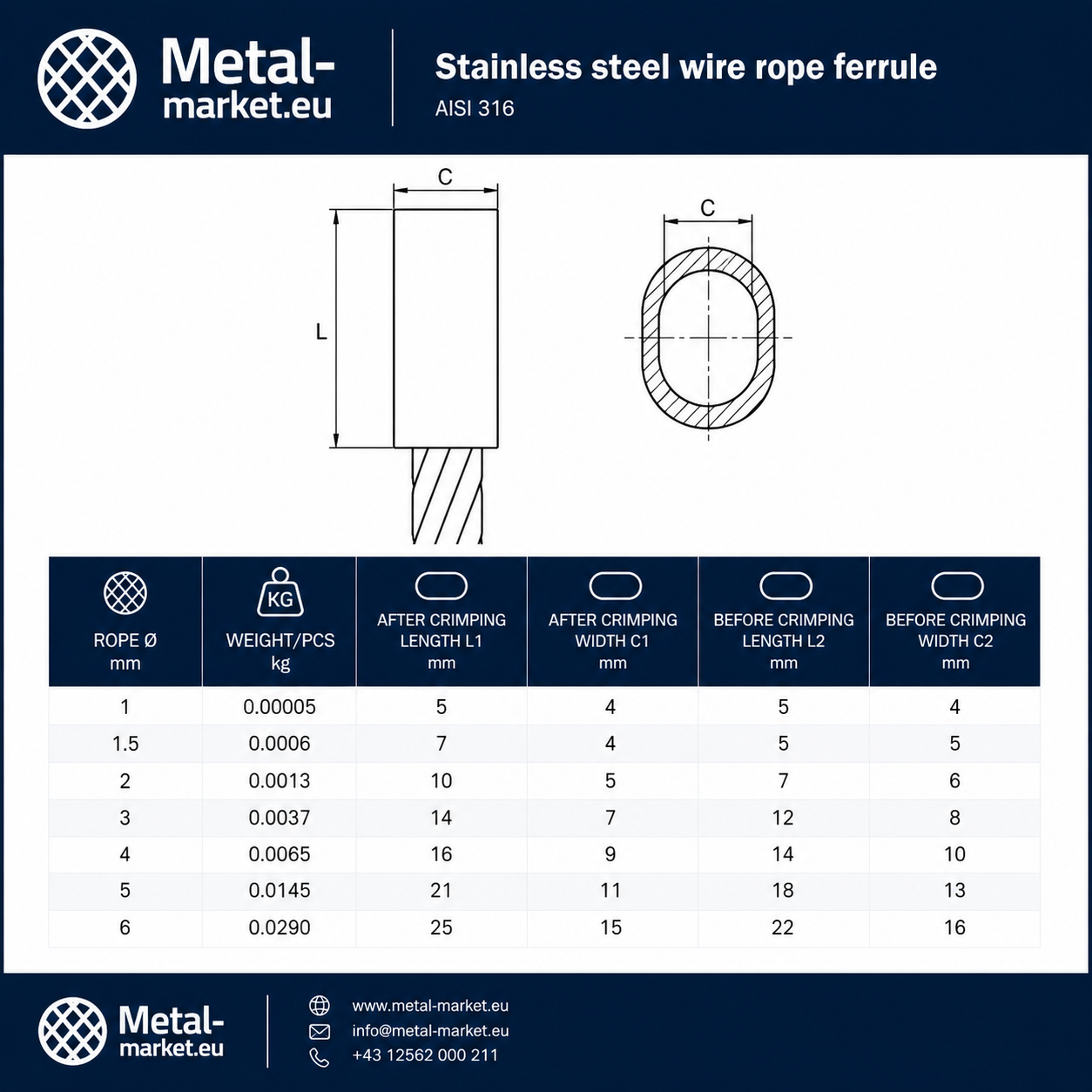

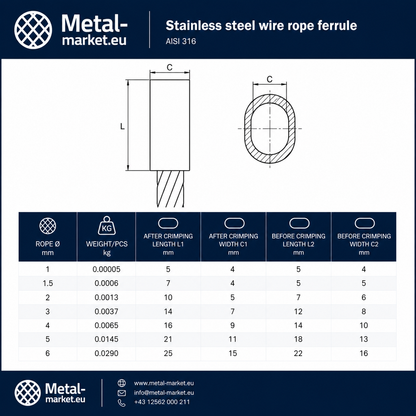

Technical details

• Material: V4A stainless steel (1.4401 / AISI 316)
• Shape: Cylindrical end sleeve
• Application: Swaging onto wire rope
• Surface: Smooth / polished
• Corrosion resistance: Very high
